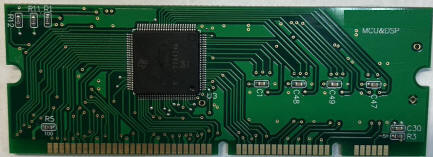

MSPM0G3507控制卡:

• Core

  • Arm 32-bit Cortex-M0+ CPU with memory protection unit, frequency up to 80 MHz

• Operating characteristics

  • Extended temperature: –40°C up to 125°C

  • Wide supply voltage range: 1.62 V to 3.6 V

• Memories

  • Up to 128KB of flash memory with error correction code (ECC)

  • Up to 32KB of SRAM with hardware parity

• High-performance analog peripherals

  • Two simultaneous sampling 12-bit 4-Msps analog-to-digital converters (ADCs) with up to 17 external channels

    • 14-bit effective resolution at 250-ksps with hardware averaging

  • One 12-bit 1-MSPS digital-to-analog converter with integrated output buffer (DAC)

  • Two zero-drift zero-crossover chopper op-amps (OPA)

    • 0.5-µV/°C drift with chopping

    • Integrated programmable gain stage, up to 32x

  • One general-purpose amplifier (GPAMP)

  • Three high-speed comparators (COMP) with 8-bit reference DACs

    • 32-ns propagation delay in high-speed mode

    • Support low-power mode operation down to 0.7 µA

  • Programmable analog connections between ADC, OPAs, COMP and DAC

  • Configurable 1.4-V or 2.5-V internal shared voltage reference (VREF)

  • Integrated temperature sensor

  • Integrated supply monitor

• Optimized low-power modes

  • RUN: 96 µA/MHz (CoreMark)

  • SLEEP: 467 µA at 4 MHz

  • STOP: 46 µA at 32 kHz

  • STANDBY: 1.5 µA with RTC and SRAM retention

  • SHUTDOWN: 80 nA with IO wake-up capability

• Intelligent digital peripherals

  • 7-channel DMA controller

  • Math accelerator supports DIV, SQRT, MAC and TRIG computations

  • Seven timers supports up to 22 PWM channels

    • One 16-bit general-purpose timer

    • One 16-bit general-purpose timer supports QEI

    • Two 16-bit general-purpose timers support low-power operation in STANDBY mode

    • One 32-bit high-resolution general-purpose timer

    • Two 16-bit advanced timers with deadband support up to 12 PWM channels

  • Two window-watchdog timers

  • RTC with alarm and calendar mode

• Enhanced communication interfaces

  • Four UART interfaces; one supports LIN, IrDA, DALI, Smart Card, Manchester, and three support low-power operation in STANDBY mode

  • Two I 2C interfaces support up to FM+ (1 Mbit/s), SMBus/PMBus, and wakeup from STOP mode

  • Two SPIs, one SPI supports up to 32 Mbits/s

  • One Controller Area Network (CAN) interface supports CAN 2.0 A or B and CAN-FD

• Clock system

  • Internal 4- to 32-MHz oscillator with up to ±1.2% accuracy (SYSOSC)

  • Phase-locked loop (PLL) up to 80 MHz

  • Internal 32-kHz low-frequency oscillator (LFOSC) with ±3% accuracy

  • External 4- to 48-MHz crystal oscillator (HFXT)

  • External 32-kHz crystal oscillator(LFXT)

  • External clock input

• Data integrity and encryption

  • Cyclic redundancy checker (CRC-16, CRC-32)

  • True random number generator (TRNG)

  • AES encryption with 128 or 256-bit key

• Flexible I/O features

  • Up to 60 GPIOs

    • Two 5-V tolerant IOs

    • Two high-drive IOs with 20-mA drive strength

• Development support

  • 2-pin serial wire debug (SWD)

• Package options

  • 64-pin LQFP

• Family members (also see Device Comparison)

  • MSPM0G3507: 128KB flash, 32KB RAM

控制基座簡介:

• 可以使用內建USB電源供電或是外接5V電源供應

• 提供5.0-V supply for prototyping area

• 提供3.3-V supply for prototyping area

• 最大提供1A的電流輸出，可連接各式周邊設備

• 可以支援MSPM0G3507控制卡，提供最多47組GPIO和14組ADC輸入
