Solar/Power System
太陽能系統控制、、數位電源控制器統整合與應用，處理器部分採用C2000高效能32位元晶片。
一、數位DSP整合式套件(採用德州儀器C2000控制處理器):
| 整合式套件 |
型號 |
說明 |
 |
C2000高效能32位元處理晶片說明 |
- 整合DSP數學運算的能力與控制周邊裝置，是一個極具高效能的微控制晶片與數位訊號處理器
|
 |
基礎Solar逆轉換低壓出實驗平台(採用F28035 or F28M35處理晶片) |
- Single switch DC/DC Boost
for Maximum Power Point Tracking
- DC/DC SEPIC for MPPT
and Battery Charging
- 36VDC Intermediary bus
- 24VAC Output Inverter stage
|
 |
Solar逆轉換輸出高電壓開發平台(採用F28035處理晶片) |
- Implements control of an
active clamp fly-back DC/DC converter with secondary voltage
multiplier, MPPT and a grid-tied DC/AC inverter.
- Supports panel voltages of
28 to 45V at input as well as universal power output at up
to 280W for 220VAC and up to 140W for 110VAC
- 93% efficiency
and less than 4% total harmonic distortion (THD)
provide more power output per solar panel, reducing
detrimental heat dissipation and increasing system
longevity.
|
 |

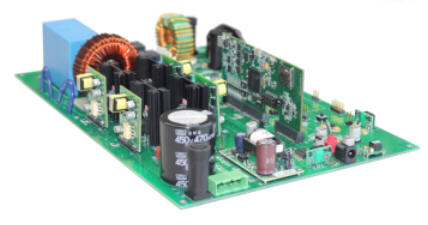

Solar逆轉換高壓單相開發平台(採用F28035
or F28M35處理晶片) |
- Piccolo or Concerto based
control 400VDC Input
- Four switch DC/AC inverter
- High Efficiency >96%
- 110/220VAC Selectable output
- Grid-Tie with Enable /
Disable
- Fully documented open source
hardware and software
|
 |

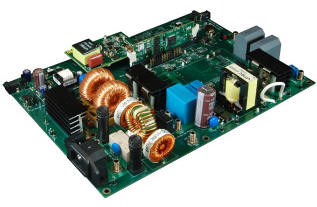

Solar高壓輸入/出MPPT開發平台(採用F28035處理晶片) |
- 200-300VDC Input up to 500Watts
- 400VDC Output
- 2 Phase DC/DC Boost for Maximum Power
Point Tracking
- 1:1 Resonant LLC for isolation
- Two phase interleaved boost stage for
maximum power point tracking, and a half-bridge resonant LLC
isolation stage,
|
 |
Solar逆轉換高壓單相開發平台(採用F28377x雙核心處理晶片) |
- 380V DC input,110Vrms 60Hz or 220Vrms
50Hz output
- 98% peak efficiency
- Low total harmonic distortion (THD) <1%
for linear loads and <3% for typical non linear loads
- Implementation of key algorithms such as
adaptive proportional resonant (PR) and resonant
controllers, software phase locked loop (SPLL) for grid sync
and active damping of LCL resonance using an adaptive
fourth-order notch filter
|
 |
C2000系列JTAG除錯模擬器與Flash燒錄器 |
|
 |
Code Composer Studio V6.x
New! |
-
最新版軟體開發環境，可支援全系列MSP430/ARM/DSP處理器，可安裝於WIN7/8/10
|
