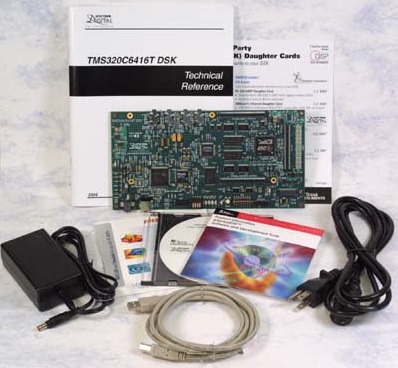

TMS320C6416T DSK開發套件

特色:

The TMS320C6416 DSK is a low-cost development platform designed to speed the development of high performance applications based on TI's TMS320C64x DSP generation. The kit uses USB communications for true plug-and-play functionality. Both experienced and novice designers can get started immediately with innovative product designs with the DSK's full featured Code Composer Studio v3.0 IDE and eXpressDSP Software which includes DSP/BIOS and Reference Frameworks.

The C6416 DSK tools includes the latest fast simulators from TI and access to the Analysis Toolkit via Update Advisor which features the Cache Analysis tool and Multi-Event Profiler. Using Cache Analysis developers improve the performance of their application by optimizing cache usage. By providing a graphical view of the on-chip cache activity over time the user can quickly determine if their code is using the on-chip cache to get peak performance.

The C6416 DSK allows you to download and step through code quickly and uses Real Time Data Exchange (RTDX™) for improved Host and Target communications. The DSK utilities include Flashburn to program flash, Update Advisor to download tools, utilities and software and a power on self test and diagnostic utility to ensure the DSK is operating correctly.

• 512K of non-volatile FLASH memory

• 16-bit stereo codec

• Four 3.5-mm audio jacks

• Standard JTAG interface with 8-pin connector

• Plug-and-play JTAG support via USB

• Expansion port connectors for plug-in modules

• +5-volt universal power supply

• Three power cords (standard US, UK, & European)

• Code Composer Studio IDE

• Fast simulators enabling cache analysis and multi-event profiling

• Power Analyzer support

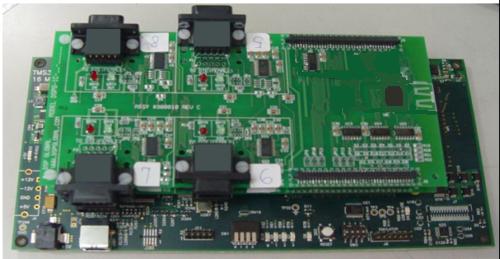

• Support for third party daughter cards

• DSK quick start guide and technical reference

發展工具 - 開發環境與軟體:
