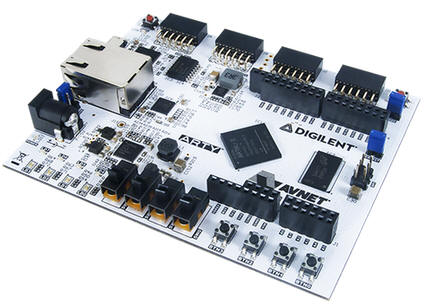

Arty Board Artix-7 FPGA開發平台



Features:

  • Xilinx Artix-35T FPGA:
    • 33,280 logic cells in 5200 slices (each slice contains four 6-input LUTs and 8 flip-flops);
    • 1,800 Kbits of fast block RAM;
    • Five clock management tiles, each with a phase-locked loop (PLL);
    • 90 DSP slices;
    • Internal clock speeds exceeding 450MHz;
    • On-chip analog-to-digital converter (XADC).
    • Programmable over JTAG and Quad-SPI Flash
  • System Features:
    • 256MB DDR3L with a 16-bit bus @ 667MHz
    • 16MB Quad-SPI Flash
    • USB-JTAG Programming circuitry (USB Micro cable required, NOT INCLUDED).
    • Powered from USB or any 7V-15V source
  • System Connectivity:
    • 10/100 Mbps Ethernet
    • USB-UART Bridge
  • Interaction and Sensory Devices
    • 4 Switches
    • 4 Buttons
    • 1 Reset Button
    • 4 LEDs
    • 4 RGB LEDs
  • Expansion Connectors:
    • 4 Pmod connectors
    • Arduino/chipKIT Shield connector
