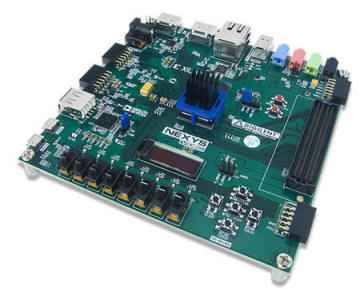

Nexys Video Artix-7 FPGA開發平台
Stats:
Device/IC: Xilinx Artix-7 FPGA (XC7A200T-1SBG484C)
Connector(s):
- Power jack
- 3 x Pmod Headers
- USB host connector
- Micro USB (UART) connector
- Micro USB (JTAG) connector
- MicroSD card slot
- FMC header
- Analog signal Pmod header (JXADC)
- Microphone and audio connectors
- DisplayPort output connector
- Ethernet connector
- HDMI output connector
- HDMI input connector
Programming: Compatible with both ISE and Vivado toolchains
Features:
- Features the Xilinx Artix-7 FPGA (XC7A200T-1SBG484C)
- 33,650 logic slices, each with four 6-input LUTs and 8 flip-flops
- 13 Mbits of fast block RAM (3x more than the Nexys 4 DDR)
- 10 clock management tiles, each with phase-locked loop (PLL)
- 740 DSP slices
- Internal clock speeds exceeding 450MHz
- On-chip analog-to-digital converter (XADC)
- Up to 3.75Gbps GTP transceivers
- Programmable over JTAG, Quad-SPI Flash, microSD, and USB flash drive
- 512MB 800MHz DDR3
- 32MB Quad-SPI flash
- microSD card slot for nonvolatile storage (card not included)
- Dedicated onboard USB port for JTAG programming and data transfers
- Powered from any 12V source (36W wall supply included)
- HDMI sink and HDMI source
- Mini DisplayPort source
- 240bit Audio codec w/ four 3.5mm jacks
- 10/100/1000 Ethernet PHY with included unique MAC address
- User EEPROM
- USB-UART bridge
- Onboard user interfaces: 128x32 monochrome OLED display, 5 user push buttons, 8 user switches, 8 user LEDs
- USB HID host for mice and keyboards
- Fully-populated 160-pin FMC LPC connector
