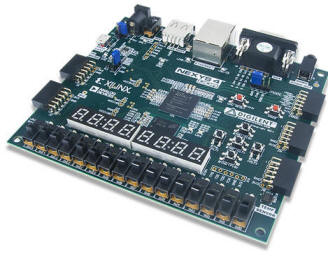

Nexys 4 DDR Artix-7 FPGA開發平台

Stats:

Processor/IC: Xilinx Artix-7 FPGA XC7A100T-1CSG324C

Connector(s):

• UART/JTAG USB port
• Pmod port for XADC signals
• Audio connector
• Ethernet connector
• USB host connector
• microSD card connector

• 12-bit VGA output

• Four Pmod ports
• Power jack

Programming: Vivado Design Suite as well as the ISE toolset

Features:

• Xilinx Artix-7 FPGA XC7A100T-1CSG324C
• 15,850 logic slices, each with four 6-input LUTs and 8 flip-flops
• 4,860 Kbits of fast block RAM
• Six clock management tiles, each with phase-locked loop (PLL)
• 240 DSP slices
• Internal clock speeds exceeding 450 MHz
• On-chip analog-to-digital converter (XADC)
• 128 MiB DDR2
• Serial Flash
• Digilent USB-JTAG port for FPGA programming and communication
• microSD card connector
• Ships with rugged plastic case and USB cable
• USB-UART Bridge
• 10/100 Ethernet PHY
• PWM audio output
• 3-axis accelerometer
• 16 user switches
• 16 user LEDs
• Two tri-color LEDs
• PDM microphone
• Temperature sensor
• Two 4-digit 7-segment displays
• USB HID Host for mice, keyboards and memory sticks
• Pmod for XADC signals
• 12-bit VGA output
