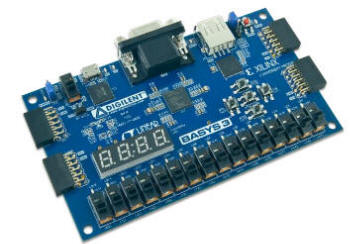

Basys 3 Artix-7 FPGA教學實驗開發平台

Stats:

Device/IC: Xilinx Artix-7 FPGA (XC7A35T-1CPG236C)

Connector(s):

• USB A
• USB micro-B
• Four 12-pin Pmod ports
• VGA

Programming: Designed exclusively for the Vivado Design Suite

Features:

• Features the Xilinx Artix-7 FPGA: XC7A35T-1CPG236C
• 33,280 logic cells in 5200 slices (each slice contains four 6-input LUTs and 8 flip-flops)
• 1,800 Kbits of fast block RAM
• Five clock management tiles, each with a phase-locked loop (PLL)
• 90 DSP slices
• Internal clock speeds exceeding 450 MHz
• On-chip analog-to-digital converter (XADC)
• USB-JTAG port for FPGA programming and communication
• Designed Exclusively for Vivado Design Suite. Expanded features are available through purchase of the Design Edition.
• Free WebPACK™ download for standard use.
• Micro-B USB cable not included.
• Serial Flash
• USB-UART Bridge
• 12-bit VGA output
• USB HID Host for mice, keyboards and memory sticks
• 16 user switches
• 16 user LEDs
• 5 user pushbuttons
• 4-digit 7-segment display
• 4 Pmod ports: 3 Standard 12-pin Pmod ports, 1 dual purpose XADC signal / standard Pmod port
