支援MSP430系列支援SpyBiWire燒錄格式

相容於MSP-FET430UIF

Support all MSP430Fxx microcontrollers.

JTAG security fuse capability (with the TI's MSP-FET430UIF).

MSP-FET430UIF firmware upgrade.

No code size limitations.

Target device can be powered from the programming adapter or from external source.

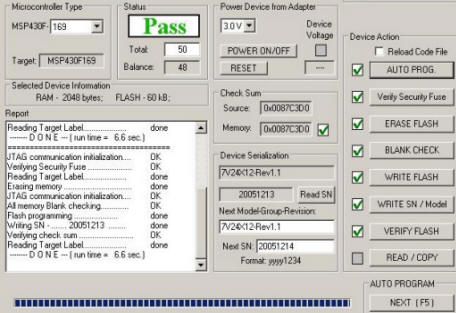

Easy to use WindowsTM based software.

Software accept TI (*.txt), Motorola (*.s19, *.s28, *.s37), Intel (*.hex) and (NEW!) *.d43 and *.a43 data files for programming.

Combine code files capability.

New: Defined Check Sum calculation (Sum, CRC16, CRC32). Up to four CS banks can be specified.

Lock setup capability, useful in production.

Software package can assign and automatically increment serial number, model type and revision. Serial Number with or without an automatically inserted current date can be stored in the FLASH memory in HEX, BCD or ASCII format (standard software version only).

Serial Number can be read from the bar code using Bar-Code Scanner and saved in the target's device FLASH (standard software version only)..

Log file capability allowing to review information about the flashed target devices (standard software version only)..
