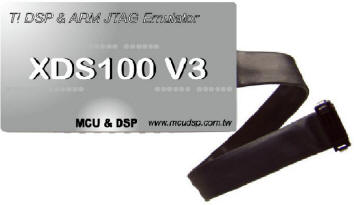

XDS100 V3(最新第三代XDS100 USB介面模擬器)模擬與燒錄器
特色:
-
使用TI標準2x10 pin cTI connector
-
可針對DSP加入2x7 pin JTAG connector或針對ARM加入2x10 pin JTAG connector
-
不需要外加電源,使用USB介面進行資料溝通
-
相容於Code Composer Studio V5.x/V6.x/V7.x的發展軟體,即時做程式下載、執行與除錯 ,並支援程式燒錄的功能。
-
包含USB 2.0 Cable
-
All of the XDS100 General Features
-IEEE 1149.7 capable emulator with a USB interface.
-Can function as an 1149.7 adapter for use with existing scan controllers.
-Support for ARM Ltd's Single Wire Output (SWO).
-Software compatible with XDS100v2 (except link delay and IEEE 1149.7 modes).
-Physical jumper to select emulator or adapter mode.
-Operates in 1149.7 Class 4, up to 25MHz.
-LED to indicate IEEE 1149.7 Class 4 operation.
-LED to indicate operation in adapter mode. -
完全支援Uniflash for TI Microcontrollers (MCU)燒錄軟體,進行晶片上程式燒錄
-
可支援的晶片包含:
Code Composer Studio v5.x+ Support |
Processor Family |
TMS320C28xx |
TMS320C54xx |
TMS320C55xx |
TMS320C674x |
TMS320C64x+ |
TMS320C66x |
ARM9 |
ARM Cortex A9 |
ARM Cortex A8 |
ARM Cortex M3/M4 |
ARM Cortex R4 |
**支援UCD3138系列 |
