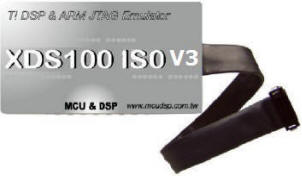

XDS100 ISO V3(隔離式)模擬與燒錄器
特色:
-
使用TI標準2x7 pin JTAG connector
-
不需要外加電源,使用USB介面進行資料溝通
-
可以進行整個C2000系列(F28x)程式與資料的讀取、寫入與除錯
-
相容於於Code Composer Studio V5.x/V6.x版本的發展軟體,即時做程式下載、執行與除錯 ,可支援程式燒錄到Flash等功能。
-
採用最新USB介面,方便攜帶與連接
-
支援傳輸速度是XDS100 ISO(隔離式)三倍以上
-
完全支援Uniflash for TI Microcontrollers (MCU)燒錄軟體,進行晶片上程式燒錄
-
All of the XDS100 General Features
-IEEE 1149.7 capable emulator with a USB interface.
-Can function as an 1149.7 adapter for use with existing scan controllers.
-Support for ARM Ltd's Single Wire Output (SWO).
-Software compatible with XDS100v2 (except link delay and IEEE 1149.7 modes).
-Physical jumper to select emulator or adapter mode.
-Operates in 1149.7 Class 4, up to 25MHz.
-LED to indicate IEEE 1149.7 Class 4 operation.
-LED to indicate operation in adapter mode.
進階特性:
-
提供4 kV ESD 的保護(IEC 60747-5-2規範)
-
符合四種標準規範設計:UL1577、IEC 61010-1、IEC 60950-1和CSA
-
可達150-Mbps傳輸速率
-
順時保護電壓至50KV/us
-
DSP目標端的PCB電路雜訊隔離
-
支援的晶片包含:
Code Composer Studio v5.x/v6.x/v7.x Support |
Processor Family |
TMS320C28xx |
