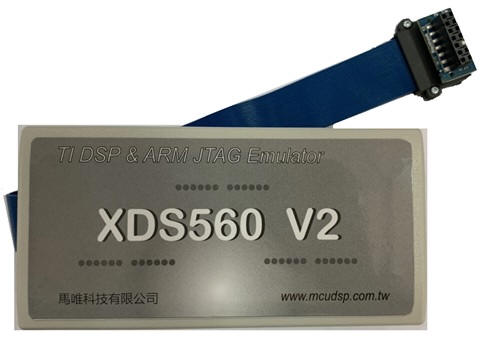

XDS560V2(最新第 二代XDS560 USB介面模擬器)
特色:
-
第二代XDS560傳輸通訊規格
-
可針對DSP加入2x7 pin JTAG connector或針對ARM加入2x10 pin JTAG connector或60 pin MIPI
-
不需要外加電源,使用USB介面進行資料溝通
-
相容於Code Composer Studio V3.3(韌體更新版)/V5.x的發展軟體,即時做程式下載、執行與除錯 ,並支援程式燒錄的功能
-
包含USB 2.0 Cable
-
Supports IEEE 1149.1 (JTAG)
Supports IEEE 1149.7
System Trace Support
-
Mobile Industry Processor Interface (MIPI)
-
System Trace Protocol (STP)
-
1-4 pin System Trace
-
128 MByte System Trace Buffer
-
-
Auto-sensing target voltage range from 1.2 to 4.1 volts
-
Auto-Adaptive Tesk Clock (TCK) up to 50 MHz
-
100MHz Export Clock compliant to MIPI STP
-
ESD Protection on target and host connections
-
Detection of target power loss and cable disconnects
-
Auto -compensating calibration for edge jitter, channel skew and duty cycle
-
Adaptive receiver for setup/hold times (up to 1.5ns)
-
完全支援Uniflash for TI Microcontrollers (MCU)燒錄軟體,進行晶片上程式燒錄
-
可支援的晶片包含:
Code Composer Studio v3.3/v5.x+ Support |
Processor Family |
C6000™ High Performance DSPs |
C6000™ Multi-Core DSPs |
C5000™ Low Power DSPs |
C28xxx Digital Control Processors |
ARM® Cortex™ A / R /M Microprocessors |
ARM® 9 / 11 Microprocessors |
OMAP™ Application Processors |
DaVinci™ Video Processors |
/Sitara/Stellaris |
