隔離式/非隔離式CAN轉USB裝置

相關產品:

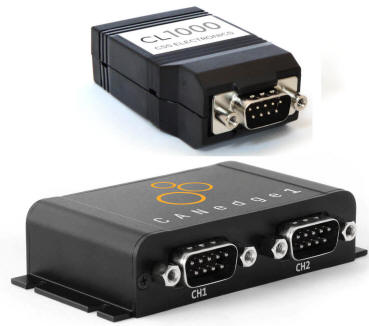

1.CAN Logger (提供單通道或雙通道CANBus資料儲存介面)

• The plug & play 2x CAN/LIN logger records times tamped CAN data (Classical/CAN FD) to the extractable 8/32 GB industrial SD card.

• It's easy-to-use: Simply connect the device to your CAN bus to start logging raw CAN data. Next, extract the data and process it using 100% free open source software/API tools - incl. file format conversion, DBC decoding and plot visualization.

• Ideal for recording CAN/LIN data over weeks, months or years.

• The logger is 100% standalone (no PC required) and data is easily extracted via USB.

2.USB介面隔離式CAN匯流排轉換(easyDSP-CAN-USB Digital Isolators)

• 採用隔離式CAN匯流排資料傳輸

• Supports CAN 2.0b and ISO11898-2

• Can handle up to 1Mbit/s CAN bitrate

• Intuitive PC User Interface for functions such as configuration, trace, transmit, filter, log etc

• Direct access to CAN H and CAN L, CAN TX and CAN RX signals for robust debugging

• Software control of termination resistance and LED display for status, traffic, BUS error

• 提供PC端GUI端簡易介面軟體，可以收發CAN匯流排資料

• 採用端子連接座方式，可輕易和其他CAN裝置進行溝通

• 包含有分析CAN網路封包資料的能力

• 提供5kV ESD 的保護(IEC 60747-5-2規範)

• 符合四種CSA標準規範設計:UL1577、IEC 61010-1、IEC 60950-1和IEC 60601-1

• 可達1Mbps傳輸速率

• DSP目標端的PCB電路雜訊隔離

• USB介面與D-Sub9接口

電腦端監控軟體

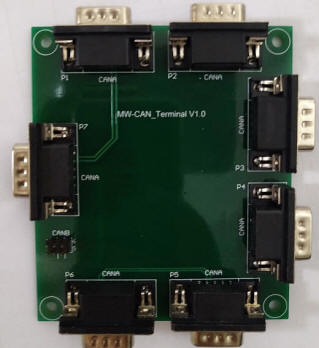

3.CANUSB轉接板(1 對6訊號轉接)

• 提供標準CANBus訊號串接轉換板，支援7組區域CAN通溝協定

• 採用DSub-9公接頭(#2 CANL ,#7 CANH)
