簡單型WiFi(802.11b/g)無線串列傳送與接收模組

特色:

1. 附合標準802.11b/g通訊協定，為標準2.4GHz WiFi無線傳輸模組，資料可透過無線方式傳輸與RS232封包結合。

2. Ultra low power: 4uA sleep mode, 38mA active

3. Onboard TCP/IP stack includes DHCP, UDP, DNS, ARP, ICMP, HTTP client, FTP client and TCP

4. Firmware configurable transmit power: 0dBm to 12dBm

5. Hardware interfaces:TTL UART
   Host data rate up to 464Kbps over UART

6. Supports Adhoc and infrastructure networking

7. 7 general purpose digital I/O

8. 2 analog sensor inputs:0-400 mV (Do not exceed 1.2V DC)

9. Real-time clock for time-stamping, auto-sleep, and auto-wakeup modes

10. Accepts 3.3VDC regulated power supply

11. Wire antenna

12. 包含傳送與接收資料的LED顯示燈示。

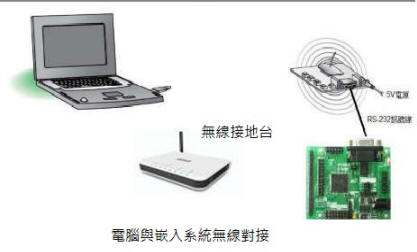

13. 支援PC或Android/iOS手機等無線傳輸設備

14. 提供使用操作軟體與中文操作練習手冊。

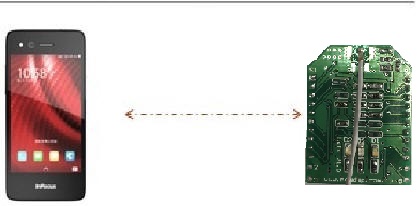

直接與手機對傳
