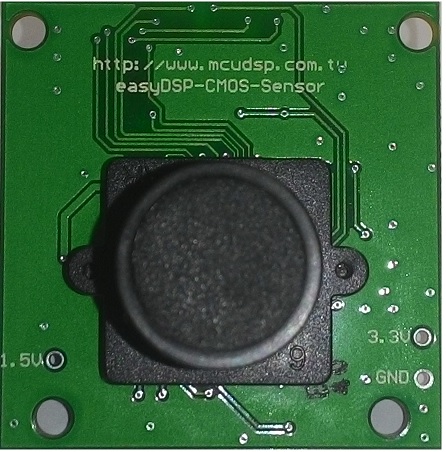

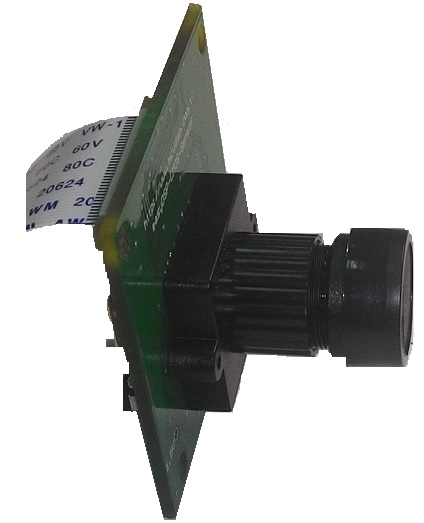

easyDSP-CMOS-Sensor百萬像素攝影模組
特色:
-
攝影機模組採用OmniVision 1/2.7" WDR CMOS HD Digital Imager -- OV10633,支援寬廣動態範圍調整
-
實際影像像素陣列: 1280 H x 800 V
-
像素大小: 4.2μm x 4.2μm
-
支援10-bit raw, 8-/10-bit YUV422格式
-
使用兩線式指令串列控制
-
Superior low-light performance
-
Low noise CMOS imaging technology that achieves CCD image quality
-
High resolution standard M12 lens
-
可搭配不同尺寸的鏡頭以攝影不同角度與距離
-
提供清晰、銳利的產生數位攝影資料,並且能夠捕捉連續影像和單張圖片,這使得它的應用領用包含影像視覺、分析,影像監視等處理
可搭配選項與設備:
開發與評估套件 | 型號 | 說明 |
|
36Pin扁平電纜連接線 New! |
FFC扁平電纜連接線 60mm 36-PIN 0.5mm PITCH |
|
訊號轉接板 New! |
FPC40訊號轉接板,轉換成2.54 DIP介面 |
