特色:
-
ARM Cortex-A8開發平台採用AM3358/9的處理器
-

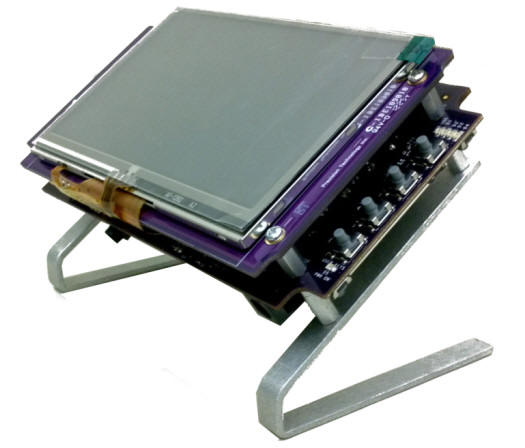

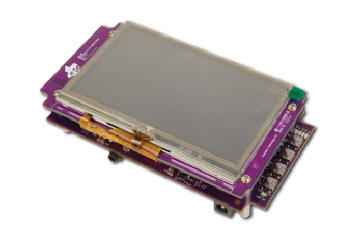

The AM335x Kit with a 4.3-inch LCD display provides a stable and affordable platform for smart appliance, industrial and networking applications. It is a low-cost development platform based on the ARM® Cortex™-A8 processor that is integrated with multiple communication options such as Dual Gigabit Ethernet.
-
Support for TI's Free Linux, Android and StarterWare software development kits.
- Hardware
- Connectivity
- Peripherals
- 256MB DDR3
- 4.3” Touch-screen LCD
- Dual Gigabit Ethernet Ports with integrated switch
- USB
- USB-UART
- USB-XDS100 emulator
Android navigation buttons - User configured LEDs
- Audio Out
- The Linux SDK includes numerous components
including:
- u-boot
- Target file system
- Host Tools
- Scripts
- Example Applications
- Documentation
-

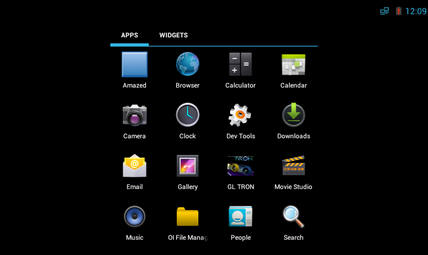

The Android Development Kit from TI is a complete software . The TI Android development Kit is based on the TI Linux and the Google AOSP releases. It provides out-of-the-box support for TI Sitara devices. The Android Development Kit for Sitara devices is provided free of charge with no development or production restrictions. Developers who would like to experiment with the latest Android code for Sitara can also visit the open source community at arowboat.org. There, users can download the latest code as well as interact with other developers and users of the Android operating system
.

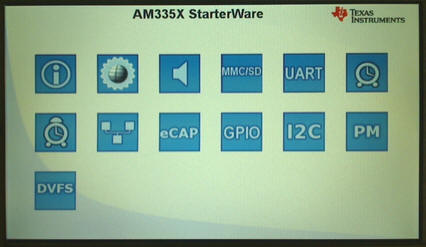

- StarterWare : C-based no-OS platform providing device abstraction layer libraries, peripheral programming and board level example applications.
發展工具 - 開發環境與軟體:
開發環境 | 型號 | 說明 |
|
硬體基座架 |
|
|
攜帶式電源組 |
|
|
JTAG接座的安裝 |
JTAG的安裝,可利用CCS來進行程式開發與除 錯 |
|
第三代XDS1xx USB介面模擬器,支援CCS5.x、CCS6.x New! | |
|
最新一代XDS2xx USB介面模擬器 ,韌體改良版,可支援CCS3.3和CCS5.x New! | |
Code Composer Studio |
V5.x /V6.x New! |
最新版軟體開發環境,可支援全系列MSP430/ARM/DSP處理器,可安裝於XP、WIN7/8作業系統 |
