處理器特色:
-
AM5718(Cortex-A15)多核心開發平台採用一顆Sitara™ ARM® Cortex®-A15 、一顆C66x DSP processor和兩顆ARM Cortex-M4 cores，並整合連接通訊界面，包含PCIe, SATA, HDMI, USB 3.0/2.0, Gigabit Ethernet等周邊裝置.
-
包含影像/視訊處理方塊，3D/2D graphics acceleration, as well as a qual-core Programmable Real-time Unit (PRU)
-

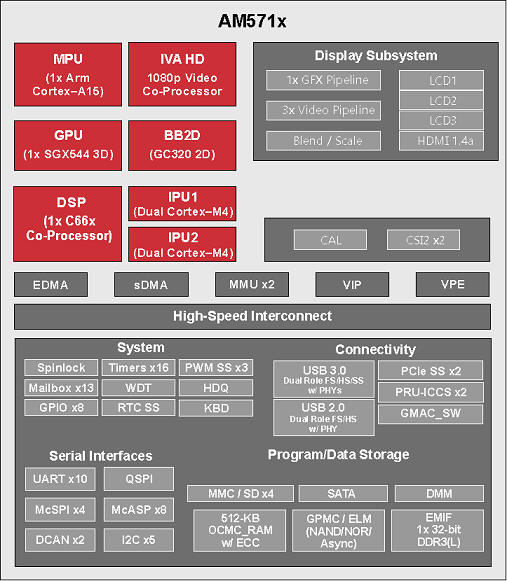

功能:
-
ARM® Cortex®-A15 Microprocessor Subsystem
-
1 C66x™ Floating-Point VLIW DSP
-
Fully Object-Code Compatible With C67x™ and C64x+™
-
Up to Thirty-two 16 × 16-Bit Fixed-Point Multiplies per Cycle
-
Up to 512KB of On-Chip L3 RAM
-
DDR3/DDR3L Memory Interface (EMIF) Modules
-
Supports up to DDR3-1066
-
Up to 2GB Supported per EMIF
-
Dual ARM® Cortex®-M4 co-processors
-
Display Subsystem
-
Full-HD Video (1920 × 1080p, 60 fps)
-
Multiple Video Input and Video Output
-
2D and 3D Graphics
-
Display Controller With DMA Engine and up to Three Pipelines
-
HDMI™ Encoder: HDMI 1.4a and DVI 1.0 Compliant
-
2x Dual-Core Programmable Real-Time Unit and Industrial Communication Subsystem (PRU-ICSS)
-
2D-Graphics Accelerator (BB2D) Subsystem
-
Vivante™ GC320 Core
-
One Video Input Port (VIP) Module
-
Video Processing Engine (VPE)
-

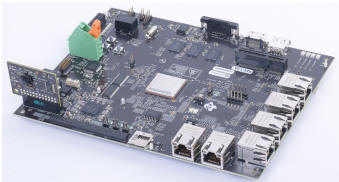

AM571x(Cortex-A15)多核心開發平台特色:
-
Support for simultaneous 6-port Ethernet, 2xRGMII and 4xMII
-
Integrated Industrial Ethernet and Fieldbus protocols for simultaneous master/slave, master/master or slave/slave operation
-
PCIe and GPMC expansion ports for fast parallel external interface
-
Camera daughter card for enablement of machine vision applications
-
Optional 10" capacitive touch display for scalable HMI application
-
Support for low latency deterministic TI-RTOS support and RT-Linux for HLOS. Additional partner OS support also available.
發展工具 - 開發環境與軟體:
| 開發環境 | 型號 | 說明 |
 |
OmniVision OV2659 camera sensor |
支援數位攝影機輸入 |
 |
10吋電容觸控LCD顯示模組 | 支援螢幕輸出功能 |
|
|
Serial Debug Cable |
串列除錯訊號線，可透過終端機程式觀察系統開機與Linux作業成程序 |
|
|
第三代XDS1xx USB介面模擬器，支援CCS5.x、CCS6.x New! | |
|
|
最新一代XDS2xx USB介面模擬器 ，韌體改良版，可支援CCS3.3和CCS5.x New! | |
| Code Composer Studio |
V5.x /V6.x New! |
最新版軟體開發環境，可支援全系列MSP430/ARM/DSP處理器，可安裝於XP、WIN7/8作業系統 |
