特色:
-

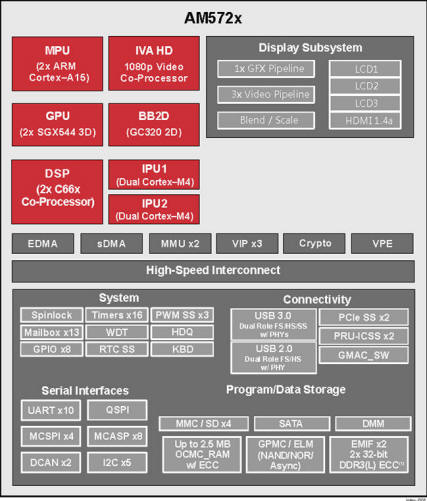

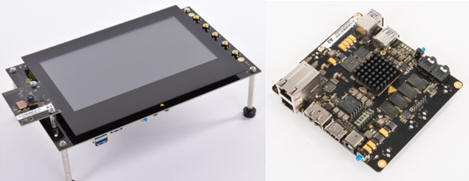

AM572x(Cortex-A15)多核心開發平台採用兩顆Sitara™ ARM® Cortex®-A15 、兩顆C66x DSP processor和兩顆ARM Cortex-M4 cores,並整合連接通訊界面,包含PCIe, SATA, HDMI, USB 3.0/2.0, Dual Gigabit Ethernet, and more.
-
包含影像/視訊 3D/2D graphics acceleration, as well as a qual-core Programmable Real-time Unit (PRU)
功能:
-
ARM® Dual Cortex®-A15 Microprocessor Subsystem
-
2 C66x™ Floating-Point VLIW DSP
-
Fully Object-Code Compatible With C67x™ and C64x+™
-
Up to Thirty-two 16 × 16-Bit Fixed-Point Multiplies per Cycle
-
Up to 2.5MB of On-Chip L3 RAM
-
Two DDR3/DDR3L Memory Interface (EMIF) Modules
-
Supports up to DDR3-1066
-
Up to 2GB Supported per EMIF
-
Dual ARM® Cortex®-M4 co-processors
-
Display Subsystem
-
Full-HD Video (1920 × 1080p, 60 fps)
-
Multiple Video Input and Video Output
-
2D and 3D Graphics
-
Display Controller With DMA Engine and up to Three Pipelines
-
HDMI™ Encoder: HDMI 1.4a and DVI 1.0 Compliant
-
2x Dual-Core Programmable Real-Time Unit and Industrial Communication Subsystem (PRU-ICSS)
-
2D-Graphics Accelerator (BB2D) Subsystem
-
Vivante™ GC320 Core
-
Video Processing Engine (VPE)
-
AM572x(Cortex-A15)多核心開發平台周邊功能:
Hardware |
Software |
Connectivity |
|
|
|
發展工具 - 開發環境與軟體:
開發環境 | 型號 | 說明 |
|
3MP Camera Module |
300百萬攝影機模組 |
|
Serial Debug Cable |
串列除錯訊號線,可透過終端機程式觀察系統開機與Linux作業成程序 |
|
第三代XDS1xx USB介面模擬器,支援CCS5.x、CCS6.x New! | |
|
最新一代XDS2xx USB介面模擬器 ,韌體改良版,可支援CCS3.3和CCS5.x New! | |
Code Composer Studio |
V5.x /V6.x New! |
最新版軟體開發環境,可支援全系列MSP430/ARM/DSP處理器,可安裝於XP、WIN7/8作業系統 |
