特色:

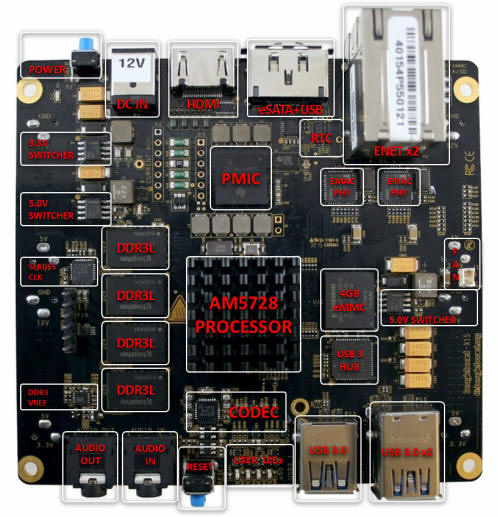

• BeagleBoard-X15 is community-supported development platform for  TI AM5728 2×1.5-GHz ARM® Cortex-A15.

• 2GB DDR3 RAM

• 4GB 8-bit eMMC on-board flash storage

• 2D/3D graphics and video accelerators (GPUs)

• 2×700-MHz C66 digital signal processors (DSPs)

• 2×ARM Cortex-M4 microcontrollers (MCUs)

• 4×32-bit programmable real-time units (PRUs)

周邊裝置:

• 2×Gigabit Ethernet

• 3×SuperSpeed USB 3.0 host

• HighSpeed USB 2.0 client

• eSATA (500mA)

• full-size HDMI video output

• microSD card slot

• Stereo audio in and out

• 4×60-pin headers with PCIe, LCD, mSATA

• It ships with the Debian GNU/Linux™ in onboard FLASH to start evaluation and development. Many other Linux distributions and operating systems are also supported including:

  • Debian

  • Android

  • Ubuntu

  • Cloud9 IDE on Node.js

  • plus much more
