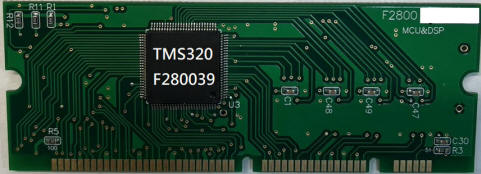

• TMS320C28x 32-bit DSP core at 120 MHz

  • IEEE 754 Floating-Point Unit (FPU)

    • Support for Fast Integer Division (FINTDIV)

  • Trigonometric Math Unit (TMU)

    • Support for Nonlinear Proportional Integral Derivative (NLPID) control

  • CRC Engine and Instructions (VCRC)

  • Ten hardware breakpoints (with ERAD)

• Programmable Control Law Accelerator (CLA)

  • 120 MHz

  • IEEE 754 single-precision floating-point instructions

  • Executes code independently of main CPU

• On-chip memory

  • 384KB (192KW) of flash (ECC-protected) across three independent banks

  • 69KB (34.5KW) of RAM (ECC-protected)

  • Dual-zone security

  • Secure Boot and JTAG Lock

• Clock and system control

  • Two internal 10-MHz oscillators

  • Crystal oscillator or external clock input

  • Windowed watchdog timer module

  • Missing clock detection circuitry

  • Dual-clock Comparator (DCC)

• 3.3-V I/O design

  • Internal VREG generation allows for single-supply design

  • Brownout reset (BOR) circuit

• System peripherals

  • 6-channel Direct Memory Access (DMA) controller

  • 55 individually programmable multiplexed General-Purpose Input/Output (GPIO) pins

  • 23 digital inputs on analog pins

  • 2 digital inputs/outputs on analog pins (AGPIO)

  • Enhanced Peripheral Interrupt Expansion (ePIE)

  • Multiple low-power mode (LPM) support

  • Embedded Real-time Analysis and Diagnostic (ERAD)

  • Unique Identification (UID) number

• Communications peripherals

  • One Power-Management Bus (PMBus) interface

  • Two Inter-integrated Circuit (I2C) interfaces

  • One Controller Area Network (CAN/DCAN) bus port

  • One Controller Area Network with Flexible Data-Rate (CAN FD/MCAN) bus port

  • Two Serial Peripheral Interface (SPI) ports

  • Two UART-compatible Serial Communication Interface (SCI)

  • Two UART-compatible Local Interconnect Network (LIN) interfaces

  • Fast Serial Interface (FSI) with one transmitter and one receiver (up to 200Mbps)

• Analog system

  • Three 4-MSPS, 12-bit Analog-to-Digital Converters (ADCs)

    • Up to 23 external channels (includes the two gpdac outputs)

  • Four integrated Post-Processing Blocks (PPB) per ADC

  • Four windowed comparators (CMPSS) with 12-bit reference Digital-to-Analog Converters (DACs)

    • Digital glitch filters

    Two 12-bit buffered DAC outputs

• Enhanced control peripherals

  • 16 ePWM channels with eight channels that have high-resolution capability (150-ps resolution)

    • Integrated dead-band support

    • Integrated hardware trip zones (TZs)

  • Three Enhanced Capture (eCAP) modules

    • High-resolution Capture (HRCAP) available on one of the three eCAP modules

  • Two Enhanced Quadrature Encoder Pulse (eQEP) modules with support for CW/CCW operation modes

  • Eight Sigma-Delta Filter Module (SDFM) input channels (two parallel filters per channel)

    • Standard SDFM data filtering

    • Comparator filter for fast action for overvalue or undervalue condition

  • Embedded Pattern Generator (EPG)

• Configurable Logic Block (CLB)

  • 4 tiles

  • Augments existing peripheral capability

  • Supports position manager solutions

• Host Interface Controller (HIC)

  • Access to internal memory from an external host

• Background CRC (BGCRC)

  • One cycle CRC computation on 32 bits of data

• Advanced Encryption Standard (AES) accelerator

晶片方塊圖:

• 連接晶片方塊圖
