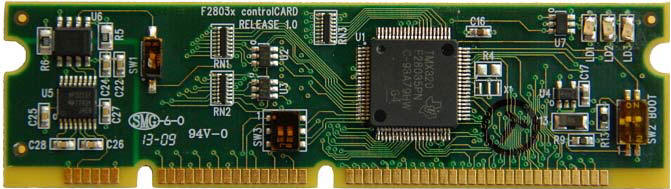

TMS320F28030 Digital Signal Controller

Standard 100-pin DIMM interface

F28x analog I/O, digital I/O and JTAG signals at DIMM interface

Isolated RS-232 interface

5V power supply required

All GPIO, ADC, and other key signal routed to gold edge connector fingers

Extensive supply pin decoupling with L+C close to pins

Clamping diode protection at ADC input pins

Anti-aliasing filter (noise filter) at ADC input pins

Standalone JTAG emulator required for debug. Sold separately.

Boot Mode Switch
