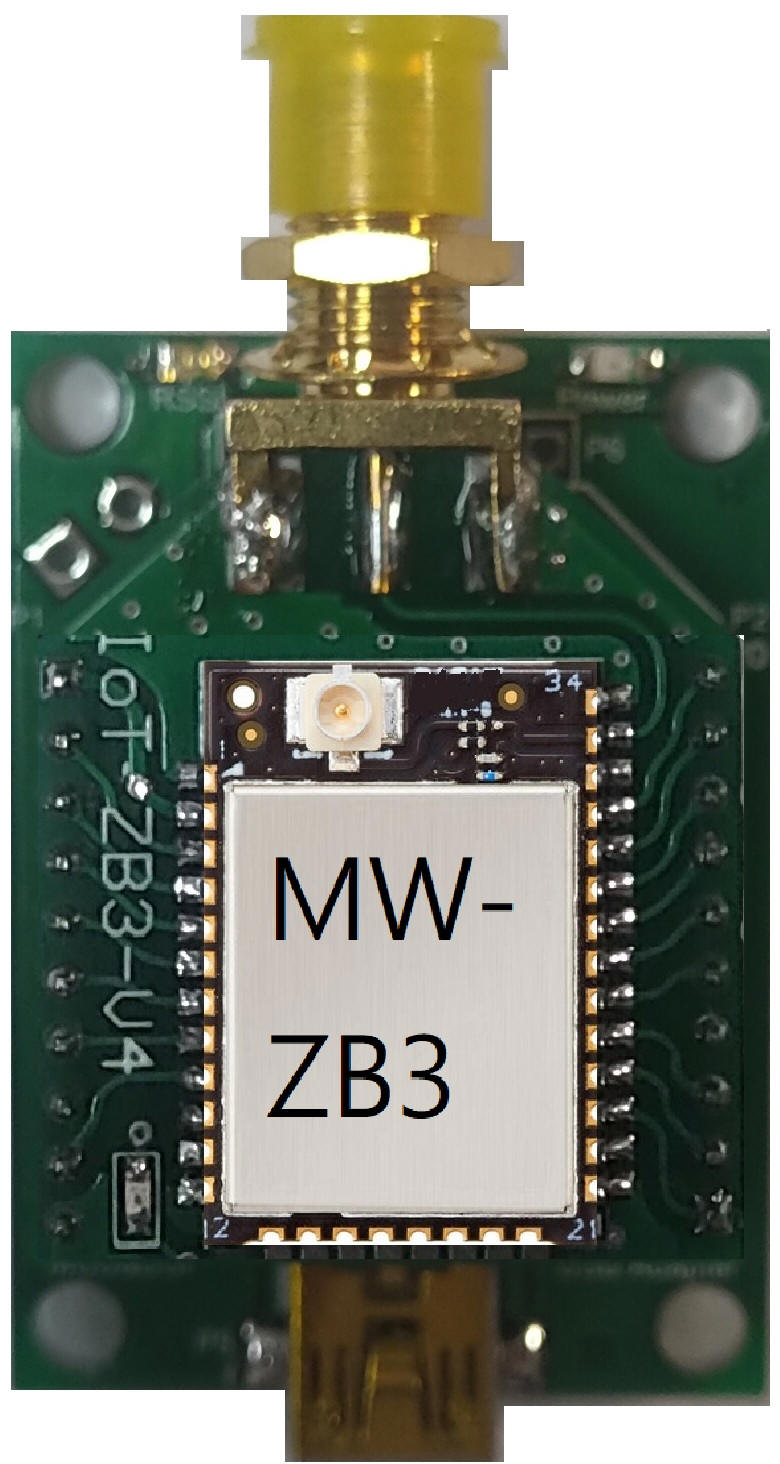

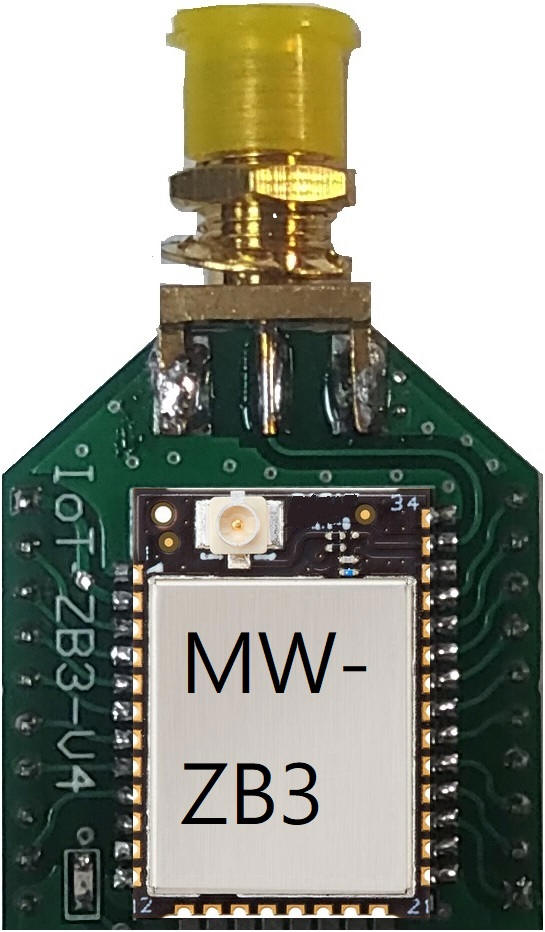

無線2.4GHz網路Zigbee感測與傳輸模組(IoT-ZB3_V4)



特色:

  1. 為標準2.4GHz Zigbee 3無線傳輸模組，內建Bluetooth Low Energy 4.2/5.0，可針對點對點之間的串列封包進行傳送與接收，可建立Coordinator、Router、End Device裝置。

  2. 亦可建立網狀、星狀與樹狀結構。

  3. 天線採用外接RPSMA天線或是U.FL,天線

  4. 接腳包含ASSOCIATE LED顯示燈示。

  5. 即插即用，設定好兩端的傳輸baudrate即可動作。

  6. 可選擇不同Zigbee模組來搭配，其規格如下表。

  7. 可搭配不同基座進行傳輸，包含USB基座(USB Adapter)、RS232基座(RS232 Apapter)，依照不同需求來搭配，並可以結合ARM、MCU或是DSP平台







可選擇兩種Zigbee3規格來搭配使用
Platform ZigBee 3 標準版 ZigBee 3 專業版
Performance
RF Data Rate

250 Kbps
Indoor/Urban Range Up to 60 m (200 ft) Up to 90 m (300 ft)
Outdoor/RF Line-of-Sight Range Up to 1200 m (4000 ft) Up to 3200 m (2 miles)
Transmit Power 6.3 mW (+8 dBm); channel 26 max power: +3 dBm 79 mW (+19 dBm); channel 26 max power: +3 dBm
Receiver Sensitivity (1% PER)

-103 dBm normal mode
BLUETOOTH® PERFORMANCE
BLE VERSION Bluetooth Low Energy 4.2/5.0
MAXIMUM DATA RATE 1 Mbps
INDOOR/URBAN RANGE* Up to 15 m (49 ft)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 300 m (984 ft)
TRANSMIT POWER +8 dBm
Features
Adjustable Power

Yes
I/O Interface 3.3V CMOS UART, ADC, DIO 3.3V CMOS UART, SPI, I2C, PWM, DIO, ADC
Configuration Method API or AT commands, local or over-the-air
Frequency Band 2.4 GHz
Interference Immunity DSSS (Direct Sequence Spread Spectrum)
Serial Data Rate 1200 bps - 1 Mbps
ADC Inputs (4) 10-bit ADC inputs
Digital I/O 10
Antenna Options Chip, U.FL, RPSMA Chip, U.FL, RPSMA
Operating Temperature
& Humidity

-40° C to +85° C, 0-95% humidity non-condensing
Networking & Security
Encryption 128-bit AES
Reliable Packet Delivery Retries/Acknowledgments
IDs and Channels PAN ID, 64-bit IEEE MAC, 16 channels PAN ID, 64-bit IEEE MAC, 15 channels
Power Requirements
Supply Voltage 1.71 to 3.8 VDC 1.71 to 3.8 VDC
Transmit Current 32 mA at 3.3 V, +8 dBm 193 mA at 3.3 V, +19 dBm
Receive Current 14 mA 14 mA
Power-Down Current 8 µA at 25 ºC 8 µA at 25 ºC



接法:

  • 如Zigbee 3一端是要接嵌入式系統設備，即可以按照下面接法連接。
  • 如兩端均是嵌入式系統設備，即可以按照下面接法連接。
