BeagleBone Black開發平台

特色:

BeagleBone Black is a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists. Boot Linux in under 10-seconds and get started on Sitara™ AM335x ARM Cortex-A8 processor development in less than 5 minutes with just a single USB cable.
BeagleBone Black ships with the Debian GNU/Linux™ in onboard FLASH to start evaluation and development. Many other Linux distributions and operating systems are also supported on BeagleBone Black including:
- Ubuntu
- Android
- Fedora
Support for TI's Free Linux, Android and StarterWare software development kits.

REV A5A.jpg

周邊特色:

Board size: 3.4" x 2.1"
DDR memory : 512 MB
Development environment Fully functional terminal interface directly in the browser and the ability to run Python, Ruby and INO Sketches directly in the Cloud9 IDE, in addition to JavaScript on Node.JS and in your web browser
Ethernet :On-chip 10/100 Ethernet
Memory Memory: 4GB eMMC memory that’s pre-loaded with Debian GNU/Linux™distribution and that frees up your microSD card slot
Processor 1GHz AM3359 Sitara ARM Cortex-A8
1-port USB 2.0 Host
1-port USB 2.0 Client
4x UART, 8x PWM, LCD, GPMC, MMC1, 2x SPI, 2x I2C, A/D Converter, 2xCAN Bus, 4 Timers

發展工具 - 開發環境與軟體:

開發環境	型號	說明
	miniUSB cable	可提供電源與讀取內部資料
	micro HDMI cable	可以將訊號從microHDMI介面輸出至有支援HDMI的LCD螢幕上
	Serial Debug Cable	串列除錯訊號線，可透過終端機程式觀察系統開機與Linux作業成程序
	JTAG接座的安裝	JTAG的安裝，可利用CCS來進行程式開發與除錯
	無線鍵盤與滑鼠	可以支援鍵盤與滑鼠等周邊
	micro HDMI 轉VGA轉換器	可以將訊號從microHDMI介面輸出至有支援VGA的LCD螢幕上
	外部接腳擴展模組	BeagleBone Black的擴充模組，直接插入擴充腳位上
	外部接腳擴展模組	BeagleBone Black的擴充模組
	外部接腳擴展模組	BeagleBone Black的擴充模組，直接插入擴充腳位上，包含LCD擴充介面端子

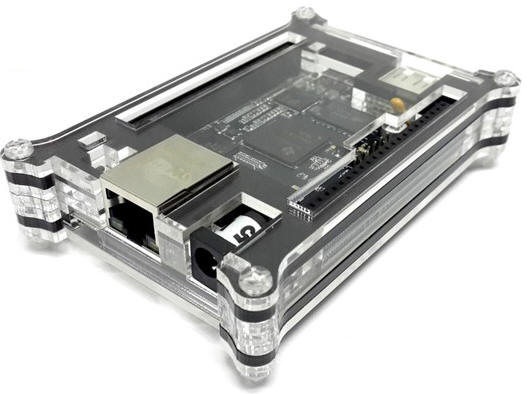

	塑膠壓克力外殼	BeagleBone Black 塑膠壓克力外殼

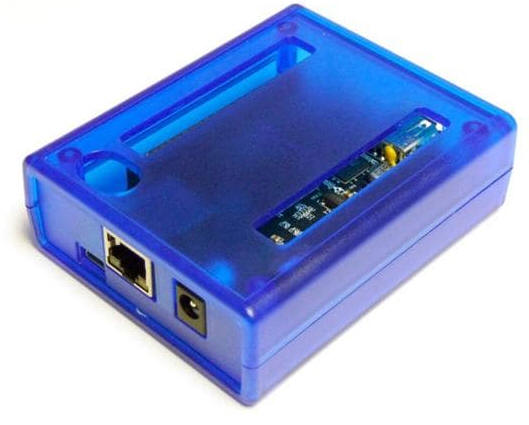

	塑膠外殼	BeagleBone Black 塑膠外殼
	4.3吋或7吋外接式螢幕	BeagleBone Black 專屬外接螢幕，有4.3吋或7吋外接式螢幕可供選擇
	XDS1xx V3模擬器	第三代XDS1xx USB介面模擬器，支援CCS5.x、CCS6.x New!
	XDS2xx模擬器	最新一代XDS2xx USB介面模擬器，韌體改良版，可支援CCS3.3和CCS5.x New!
Code Composer Studio	V5.x /V6.x New!	最新版軟體開發環境，可支援全系列MSP430/ARM/DSP處理器，可安裝於XP、WIN7/8作業系統
