多核心TMS320F28388D控制運算控制卡easyDSP-F2838XX(S)

Arm Cortex-M4和雙核心的C28x結合-64位元浮點計算



基本晶片特色:

  • Dual-core C28x architecture
    • Two TMS320C28x 32-bit CPUs
      • 200 MHz
      • IEEE 754 double-precision (64-bit) Floating-Point Unit (FPU)
      • Trigonometric Math Unit (TMU)
      • CRC engine and instructions (VCRC)
      • Fast Integer Division (FINTDIV)
    • 512KB (256KW) of flash on each CPU (ECC-protected)
    • 44KB (22KW) of local RAM on each CPU
    • 128KB (64KW) of global RAM shared between the two CPUs (parity-protected)
  • Two Control Law Accelerators (CLAs)
    • 200 MHz
    • IEEE 754 single-precision floating-point
    • Executes code independently of C28x CPU
  • System peripherals
    • Two External Memory Interfaces (EMIFs) with ASRAM and SDRAM support
    • Two 6-channel Direct Memory Access (DMA) controllers
    • Up to 169 General-Purpose Input/Output (GPIO) pins with input filtering
    • Expanded Peripheral Interrupt controller (ePIE)
    • Low-power mode (LPM) support
    • Dual-zone security for third-party development
    • Unique Identification (UID) number
    • Embedded Real-time Analysis and Diagnostic (ERAD)
    • Background CRC (BGCRC)
  • Connectivity Manager (CM)
    • Arm Cortex-M4 processor
    • 125 MHz
    • 512KB of flash (ECC-protected)
    • 96KB of RAM (ECC-protected or parity-protected)
    • Advanced Encryption Standard (AES) accelerator
    • Generic CRC (GCRC)
    • 32-channel Micro Direct Memory Access (µDMA) controller
    • Universal Asynchronous Receiver/Transmitter (CM-UART)
    • Inter-integrated Circuit (CM-I2C)
    • Synchronous Serial Interface (SSI)
    • 10/100 Ethernet 1588 MII/RMII
    • MCAN (CAN-FD)
  • C28x communications peripherals
    • Fast Serial Interface (FSI) with two transmitters and eight receivers
    • Four high-speed (up to 50-MHz) SPI ports (pin-bootable)
    • Four Serial Communications Interfaces (SCI/UART) (pin-bootable)
    • Two I2C interfaces (pin-bootable)
    • Power-Management Bus (PMBus) interface
    • Two Multichannel Buffered Serial Ports (McBSPs)
  • CM-C28x shared communications peripherals
    • EtherCAT Slave Controller (ESC)
    • USB 2.0 (MAC + PHY)
    • Two Controller Area Network (CAN) modules (pin-bootable)
  • Analog subsystem
    • Four Analog-to-Digital Converters (ADCs)
      • 16-bit mode
        • 1.1 MSPS each
        • 9 differential or 20 single-ended inputs
      • 12-bit mode
        • 3.5 MSPS each
        • 20 single-ended inputs
      • Single sample-and-hold (S/H) on each ADC
      • Hardware post-processing of conversions
    • Eight windowed comparators with 12-bit Digital-to-Analog Converter (DAC) references
    • Three 12-bit buffered DAC outputs
  • Control peripherals
    • 32 Pulse Width Modulator (PWM) channels
      • High resolution on both A and B channels of 8 PWM modules (16 channels)
      • Dead-band support (on both standard and high resolution)
    • Seven Enhanced Capture (eCAP) modules
      • High-resolution Capture (HRCAP) available on two of the seven eCAP modules
    • Three Enhanced Quadrature Encoder Pulse (eQEP) modules
    • Eight Sigma-Delta Filter Module (SDFM) input channels, 2 independent filters per channel
  • Configurable Logic Block (CLB)
    • Augments existing peripheral capability
    • Supports position manager solutions

  •

    晶片方塊圖:

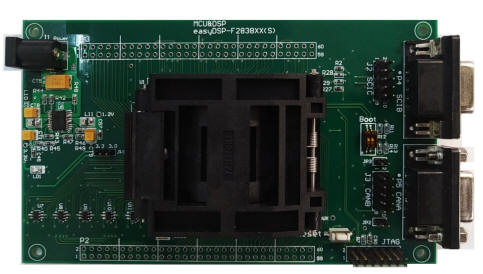

    硬體模組特性:

    • 包含TMS320F28388處理器，可插拔式設計替換。

    • 包含一組RS-232連接頭與一組排座

    • 包含一組CAN連接頭與一組排座、包含終端電阻選擇

    • 晶片腳位有拉出，包含GPIO、ADC和電源訊號

    • 包含ePWM訊號輸出，最多擁有24個通道

    • ADC 通道輸入並有電壓保護裝置穩壓3.3V，不必外加齊納二極體 ，本身ADC共有20個輸入通道。

    • ADC 通道輸入並包含Anti-aliasing filter (noise filter)功能，可做基本低通濾波電路

    • 透過CCSv10+軟體進行程式除錯，支援程式燒錄等功能

    • 兩組可控制的LED顯示燈

    • 支援隔離式ISO-JTAG轉接介面

    • 支援開機模式設定

    • 使用5V 電源，最多可支援最高到15V輸入

    • 可提供最高至1A電流輸出給周邊電路

    • 發展工具 - 開發環境與軟體:

    開發環境 型號 說明

    		XDS1xx ISO V2(隔離式)模擬器 第二代XDS1xx USB介面模擬器，添加隔離式介面，支援CCS4.x、5.x、CCS6.x 。(提供比上一代更高兩倍的傳輸速度)New!

    XDS11x ISO(隔離式)模擬器

    		最新一代XDS11x USB介面模擬器 ，添加隔離式介面，可支援CCS6.x以上版本。(提供比上一代更高五倍的傳輸速度)New!。

    easyDSP-SCI-ISO隔離式SCI傳輸器

    		 支援串列訊號TTL轉USB介面，採用隔離式介面 New!

    單極性多功能訊號轉接板

    		 提供單極性電壓輸出控制模組，支援標準SPI介面，相容於C2000/MSP430系列所有晶片

    雙極性DAC電壓輸出模組

    		 提供正負雙極性電壓輸出控制模組，支援標準SPI介面，相容於C2000/MSP430系列所有晶片

    Micro SD儲存裝置(easyDSP-SD Card)

    		 採用SPI介面資料傳輸，可以相容各式DSP與MCU處理晶片

    easyDSP-F28377xDAQ

    		 雙核心浮點DSP運算控制多功能資料擷取卡，提供豐富的教學程式與範例

    嵌入式DSP系統與CAN匯流排開發套件

    		 結合TI DSP處理器的CAN匯流排開發套件
    4通道降壓轉會模組 類比電壓準位轉換模組
    4通道升壓轉換模組 類比電壓準位轉換模組
    Code Composer Studio V8.x New! 最新版軟體開發環境，可支援全系列MSP430/ARM/DSP處理器，可安裝於WIN7/8/10
